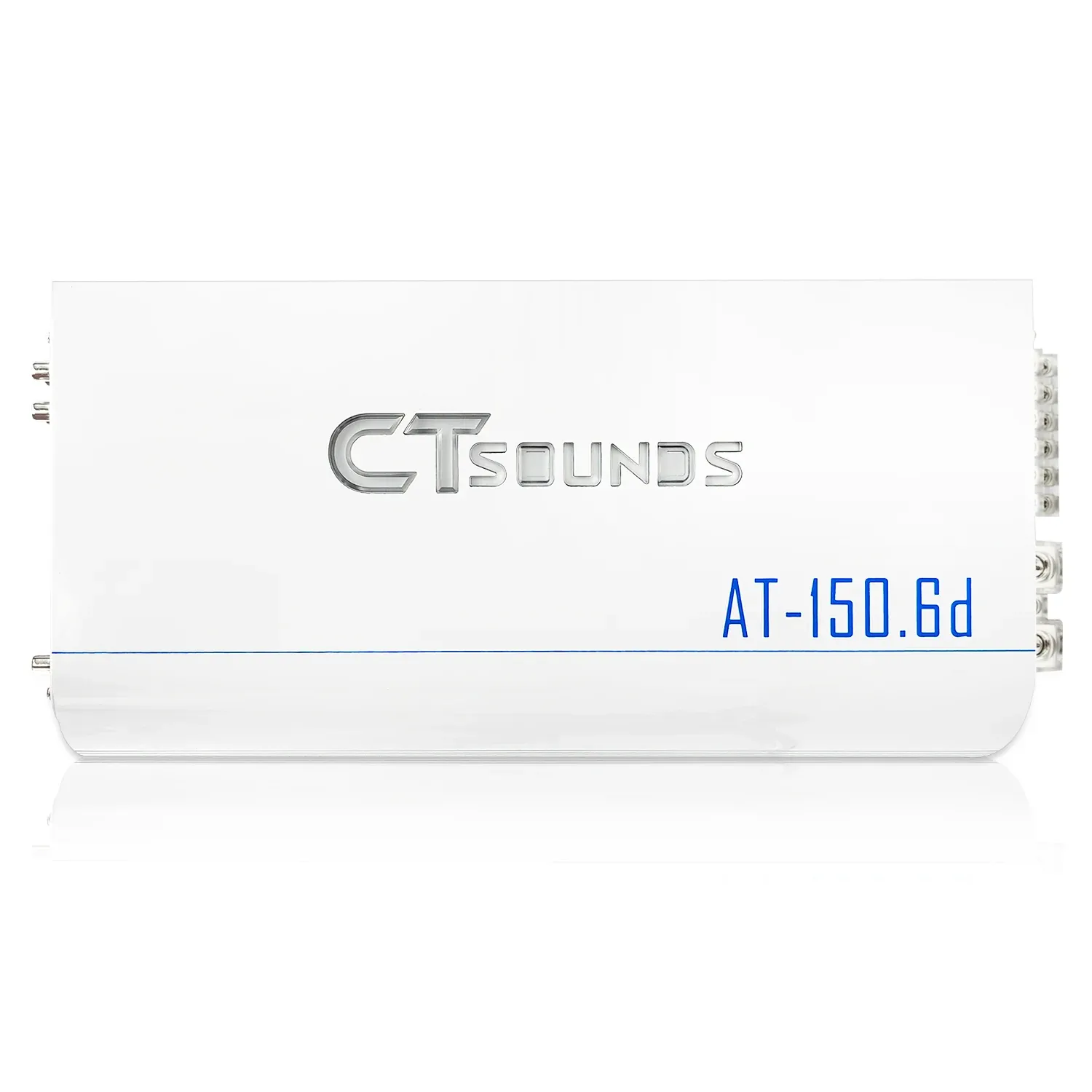

ATv2-150.6d // 1500 Watts RMS 6-Channel Car Audio Amplifier
$382.99
In stock
Product Details
The CT Sounds ATv2-150.6d 6-Channel Car Audio Amplifier will deliver the power you need to destroy the competition in the SPL lanes. Built using an advanced PCB board featuring industry-leading capacitors, high-quality transformers, and cutting-edge inductors. Equipped with 4-way protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection; sleep easy at night knowing your 6ch car amplifier is protected.
The plexiglass backing, LED CT Sounds logo, and reinforced tiffany style RCAs gives this amplifier an unbeatable appearance. Furthermore, the reinforced heat sink design and MOSFET PWM switching technology ensure this amplifier runs cool for even the most demanding playlists.
Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds AT-150.6d has the power to create the sonic explosion you crave. This 6-channel amplifier has tremendous audio coverage capabilities while assuring harmonic-less audio output waves reducing unnecessary electromagnetic inductions.
| Quick Facts: | |
| RMS Power: 2Ω @ 13.2v | 250 Watts x 6-Channels |
| RMS Power: 4Ω @ 13.2v | 150 Watts x 6-Channels |
| RMS Power: 4Ω @ 13.2v | 500 Watts x 2-Channels Bridged |
| Power & Ground Input Size: | 0 Gauge |
| Speaker Input Size: | 8 Gauge |
| Technical Specifications: | |
| Amplifier Type: | 6-Channel Amplifier |
| Amplifier Circuitry: | Class D |
| Built-In Crossover? | Yes; HPF, Full-Range, LPF |
| Bridgeable? | Yes |
| RMS Power @ 2 Ohm: | 250 Watts x 6-Channels (13.2v) |
| RMS Power @ 4 Ohm: | 150 Watts x 6-Channels (13.2v) |
| RMS Power @ 4 Ohm (Bridged): | 500 Watts x 2-Channels (13.2v) |
| Recommended Fuse: | 120A |
| Power & Ground Input Size: | 0 Gauge |
| Speaker Input Size: | 8 Gauge |
| Gain Adjustment: | 0.22v - 7v |
| Low Pass Filter (LPF): | CH1/2: 50 Hz - 1 kHz CH3/4: 50 Hz - 500 Hz CH5/6: 50 Hz - 500 Hz |
| High Pass Filter (HPF): | CH1/2: 50 Hz - 1 kHz CH3/4: 50 Hz - 500 Hz CH5/6: 50 Hz - 500 Hz |
| Bass Boost: | CH1/2: 0 dB - 6 dB CH1/2: 0 dB - 8 dB CH1/2: 0 dB - 12 dB |
| Bass Boost Frequency: | 50 Hz |
| Frequency Response: | 20 Hz - 20 kHz |
| Signal-To-Noise Ratio (S/N): | 90 dB |
| Damping Factor: | 185 |
| Input Impedance: | 20 Kohms |
| Input Sensitivity: | 220 mV |
| Operating Voltage: | 9v - 16v |
| Minimum Impedance: | 2 ohm |
| Dimensions: | |
| Length: | 15.94" |
| Width: | 7.59" |
| Height: | 2.28" |
