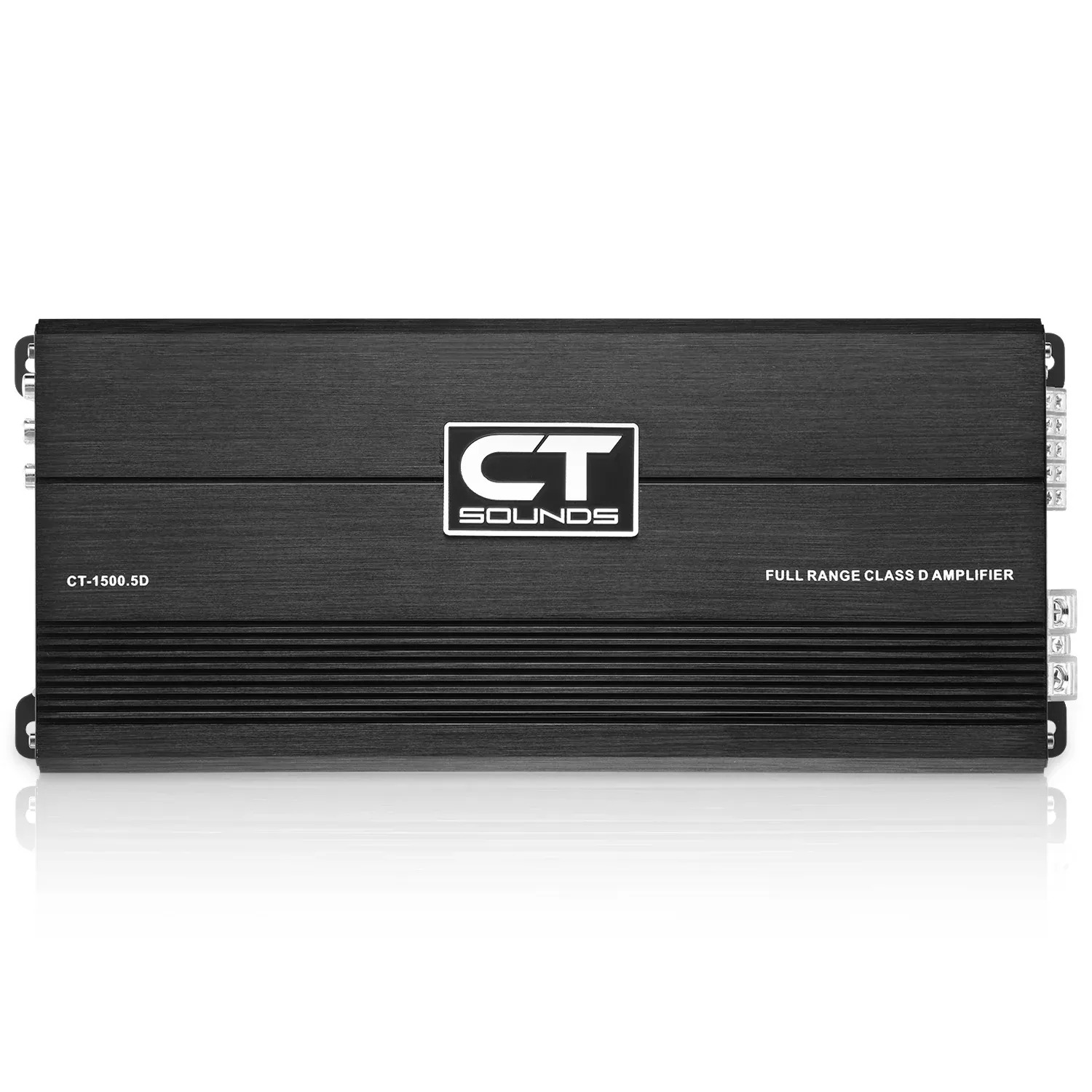

CT-1500.5D // 1800 Watts RMS 5-Channel Car Audio Amplifier
$275.99
In stock
Product Details
The CT Sounds CT-1500.5D is an 1800-watt 5-channel amplifier designed for those who demand power, efficiency, and affordability. This compact yet robust amplifier can drive an entire car audio system—4 speakers and a subwoofer—all from a single unit, making it the perfect all-in-one solution.
| Quick Facts: | |
| RMS Power: 1Ω @ 14.4v | CH5: 1000W x 1-Ch |
| RMS Power: 2Ω @ 14.4v | CH1-4: 210W x 4-Ch CH5: 600W x 1-Ch |
| RMS Power: 4Ω @ 14.4v | CH1-4: 120W x 4-Ch CH5: 300W x 1-Ch |
Designed for precision tuning, the amplifier features a Low Pass Filter (LPF), High Pass Filter (HPF), and Bass Boost, allowing you to fine-tune your sound to your exact preferences. The MOSFET power supply and proprietary heat dissipation design keep the amplifier running cool, ensuring sustained performance even during extended use.
The compact chassis and small footprint make installation straightforward, fitting seamlessly into almost any vehicle. Built-in protection circuitry safeguards against high voltage, low voltage, over current, and excessive temperatures, providing long-term reliability and peace of mind.
| Technical Specifications: | |
| Amplifier Type: | 5-Channel Amplifier |
| Amplifier Circuitry: | Class D |
| Built-In Crossover? | CH1-4: Yes; HPF, Full-Range CH5: Yes, LPF |
| Bridgeable? | Yes |
| RMS Power @ 1 Ohm: | CH5: 1000Wx 1-Ch (14.4v) |
| RMS Power @ 2 Ohm: | CH1-4: 210W x 4-Ch (14.4v) CH5: 600W x 1-Ch (14.4v) |
| RMS Power @ 4 Ohm: | CH1-4: 120W x 4-Ch (14.4v) CH5: 300W x 1-Ch (14.4v) |
| RMS Power @ 4 Ohm (Bridged): | CH1-4: 350W x 2-Ch (14.4v) |
| Recommended Fuse: | 180A |
| Power & Ground Input Size: | 4 Gauge |
| Speaker Input Size: | 8 Gauge |
| Gain Adjustment: | 0.22v - 6v |
| Low Pass Filter (LPF): | CH1-4: N/A CH5: 50 Hz - 250 Hz |
| High Pass Filter (HPF): | CH1-4: 40 Hz - 4 kHz CH5: N/A |
| Bass Boost: | CH1-4: N/A CH5: 0 dB - 12dB |
| Bass Boost Frequency: | 45 Hz |
| Frequency Response: | 20 Hz - 20 kHz |
| Signal-To-Noise Ratio (S/N): | 94 dB |
| Damping Factor: | 180 |
| Input Impedance: | 22 Kohms |
| Input Sensitivity: | 220 mV |
| Operating Voltage: | 8.6v - 16v |
| Minimum Impedance: | 1 ohm |
| Dimensions: | |
| Length: | 13.2" |
| Width: | 5.63" |
| Height: | 2.19" |
