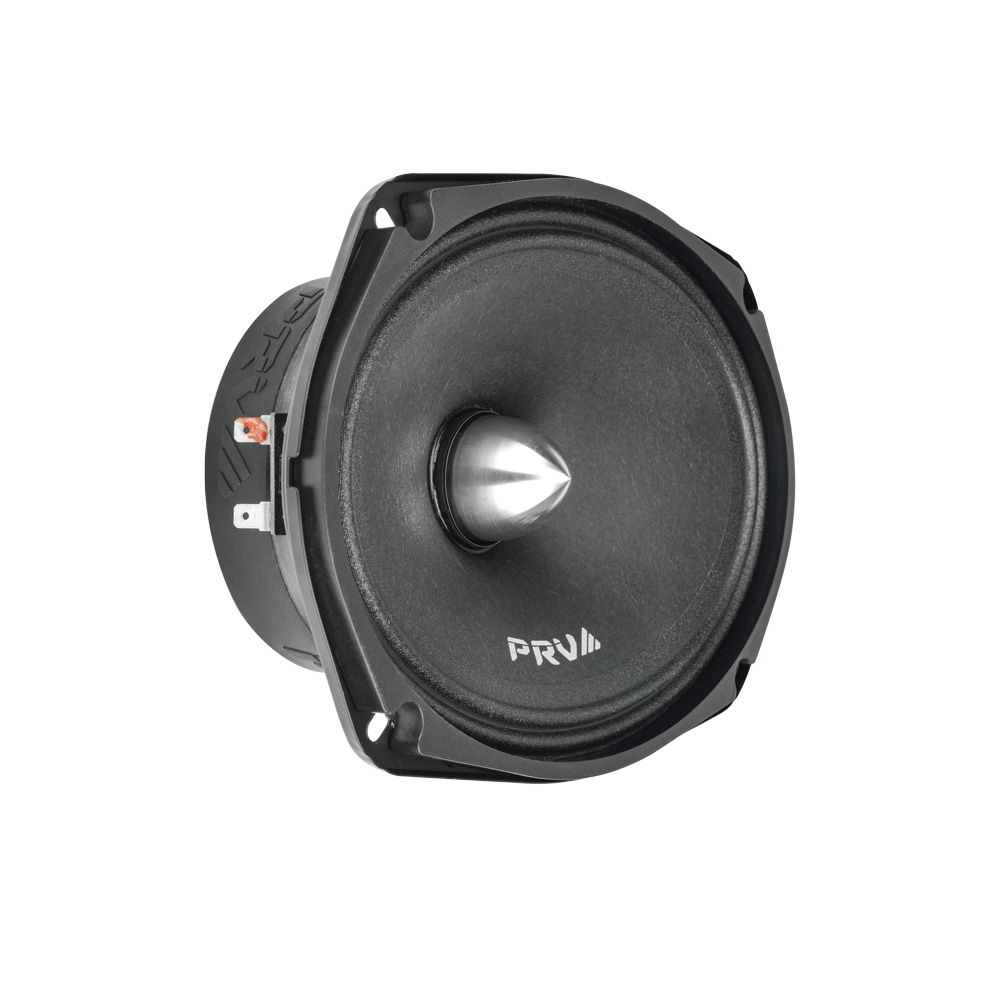

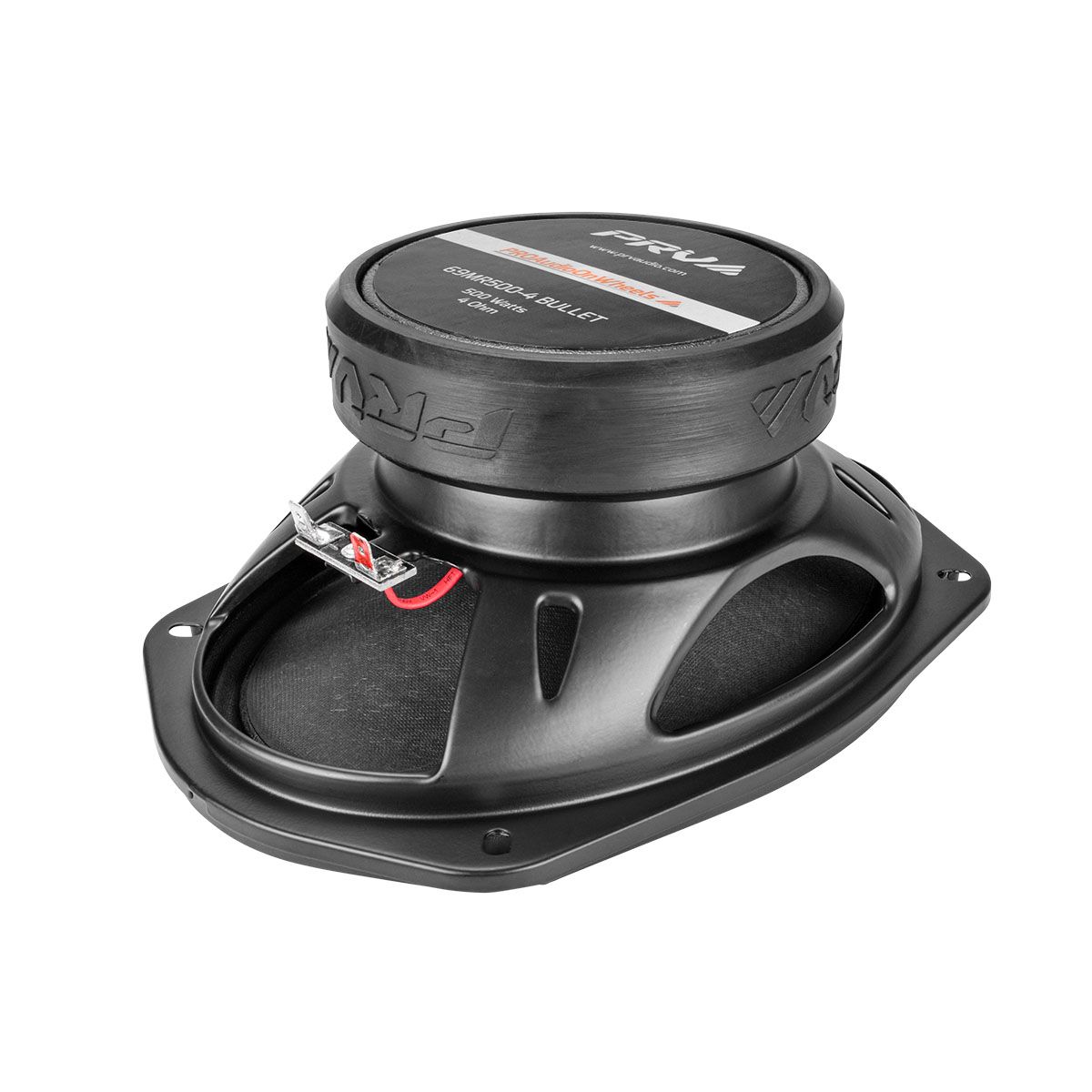

PRV 69MR500-4 BULLET

Nominal Diameter	6×9″ (152 x 228 mm)
Nominal impedance	4 Ohm
Nominal Power Handling*	250 Watts
Continuous Program Power (RMS)**	500 Watts
Max Peak Power***	1000 Watts
Sensitivity 2.00V at 1m	96 dB
Recommended Hi Pass Crossover For Full Power Handling	145 Hz 12db Per Octave Crossover
Frequency Response	150 – 12,500 Hz
Voice Coil Diameter	1.5″ (38 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	9.5 mm
Former Material	Kapton
Magnetic Gap Depth	6.0 mm
Frame Material	Stamped Steel

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Equivalent Volume	Vas	5.21 l
Excursion(mathematical)***	Xmax	3.25 mm
Free Air Resonance	Fs	148.9 Hz
Mechanical Factor	Qms	16.80
Electrical Factor	Qes	1.20
Total Factor	Qts	1.12
Cone Area	Sd	216 cm²
Mechanical Mass	Mms	13.11 g
Bl Factor	Bl	5.86 Tm
Dc Resistance	Re	3.3 Ohms
Inductance	Le	0.130 mH at 1 kHz
Mechanical Mass Without Air	Mmd	9.31 g
Mechanical Compliance	Cms	0.080 mm/N
