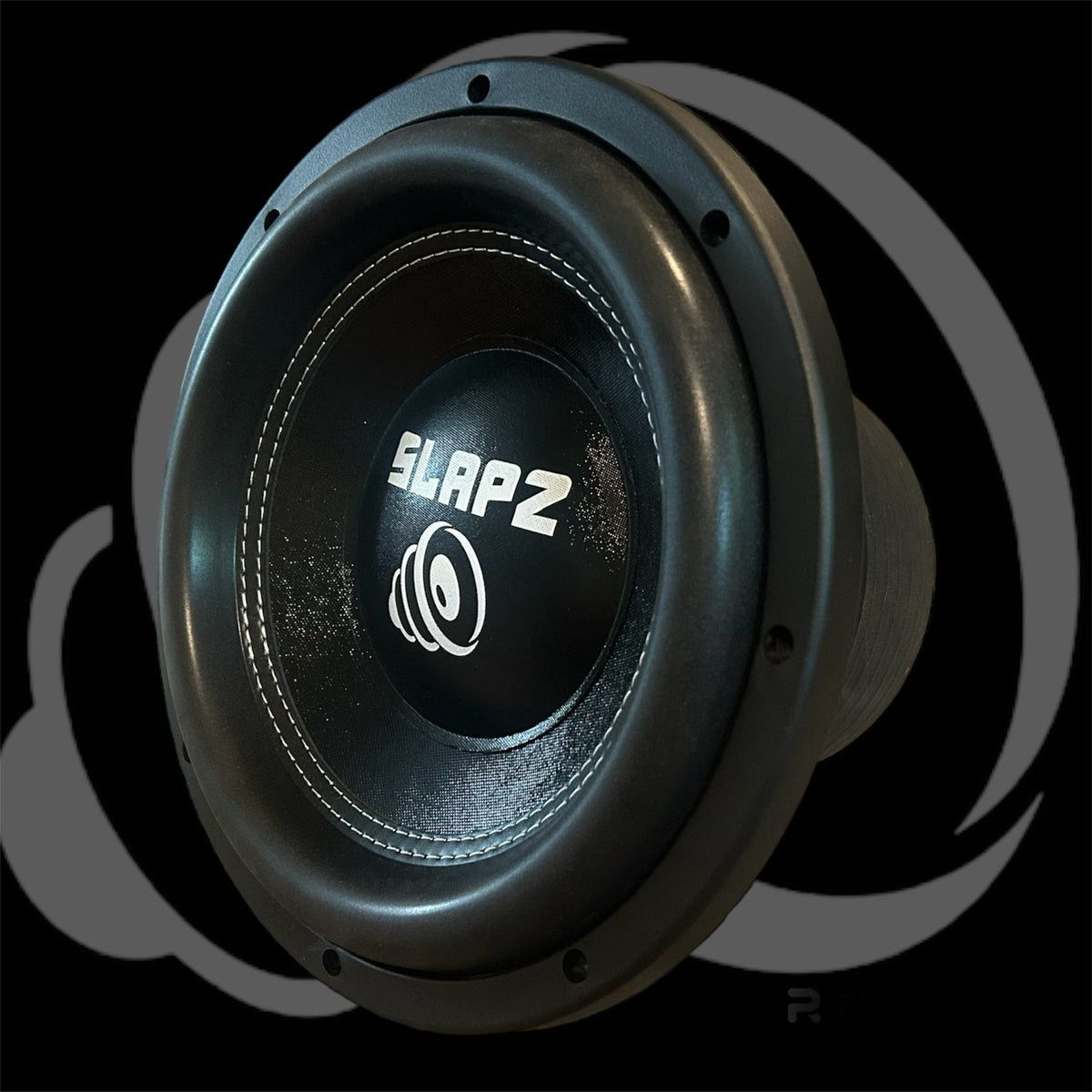

SLAPZ Car Audio Oblivion Subwoofer 1500 to rms 4000 max 4” voice coil

SLAPZ Car Audio Oblivion competition Subwoofer. With a 3"(10") 4” black coated voice coil, and a (3000 10") 4000 watt max rating, you are bound to hit s ome incredible DB numbers, and all on a budget. After hours of testing, and installing different spider packs on an already great design, we know the Oblivion line will give you the demos, and the SPL numbers you have been waiting for.

RMS ………...................(1500 10") 2000 Watts

Peak …………..........…….(3000 10") 4000 Watts

Impedance...................DVC 4 ohm (2 ohm parallel, 8 ohm series)

Voice Coil diameter …..4” 4 layer black coated

Winding height 51mm

Pressed paper cone

High roll foam surround

270oz Y35 triple stack magnet

Double layer Nomex spider pack

Dual Tinsel leads

Oversized 6ga push terminals

Mounting depth………….8.25”

Overall Diameter...........12.4”

Baffle cutout diameter..11.2”

FS …………..…..........…….37Hz

QTS............................. .66

QES............................. .75

QMS............................ 6.59

VAS.............................. 18.68L

Xmax........................... 29mm

Suggested ported box 2-2.5cu/ft

Suggested port tuning 32-35Hz

Suggested port area 25-28 Sq/in
